What is a sugar ucket elevator?

Thursday March-20 2025  15:44:30

A Sugar Bucket Elevator is a specialized type of bucket elevator designed for the vertical transportation of sugar and sugar-based products, such as candies, granules, or powdered sugar. It is widely used in the food and confectionery industry to efficiently move sugar products between different stages of production, packaging, and storage.

Why Choose a Bucket Elevator for Sugar and Candy?

Gentle Handling: Bucket elevators are designed to handle delicate products like candies and sugar without causing damage or breakage.

Hygienic Design: Made with food-grade materials (e.g., stainless steel), they meet strict hygiene standards required in the food industry.

Efficiency: They provide a continuous and automated flow of materials, reducing manual labor and increasing productivity.

Versatility: Suitable for various forms of sugar, including granulated, powdered, and crystalline sugar, as well as candies.

Space-Saving: Vertical design minimizes floor space usage, making them ideal for facilities with limited space.

Sugar Bucket Elevator Applications in the Candy and Sugar Industry

Candy Production: Transporting sugar, chocolate, or other ingredients during candy manufacturing.

Sugar Refining: Moving raw or refined sugar between processing stages.

Packaging Lines: Elevating sugar or candies to packaging machines.

Storage Facilities: Transferring sugar products to silos or storage bins.

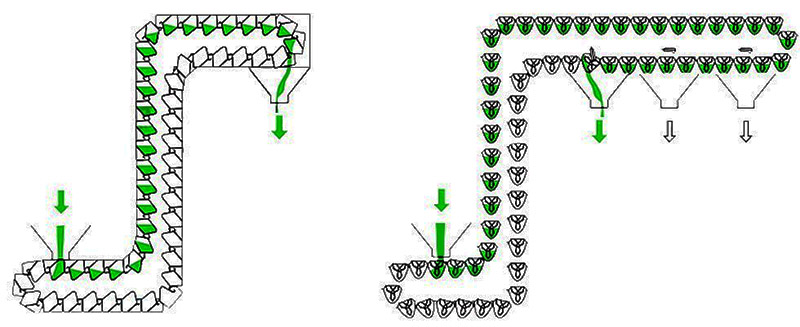

How Does a Sugar Bucket Elevator Work?

Loading: Sugar or candies are fed into the elevator's boot (bottom section) through an inlet.

Lifting: Buckets attached to a belt or chain scoop up the material and carry it vertically.

Discharge: At the top, the buckets tip over, releasing the material into a chute or conveyor for further processing.

Return: The empty buckets return to the boot to repeat the cycle.

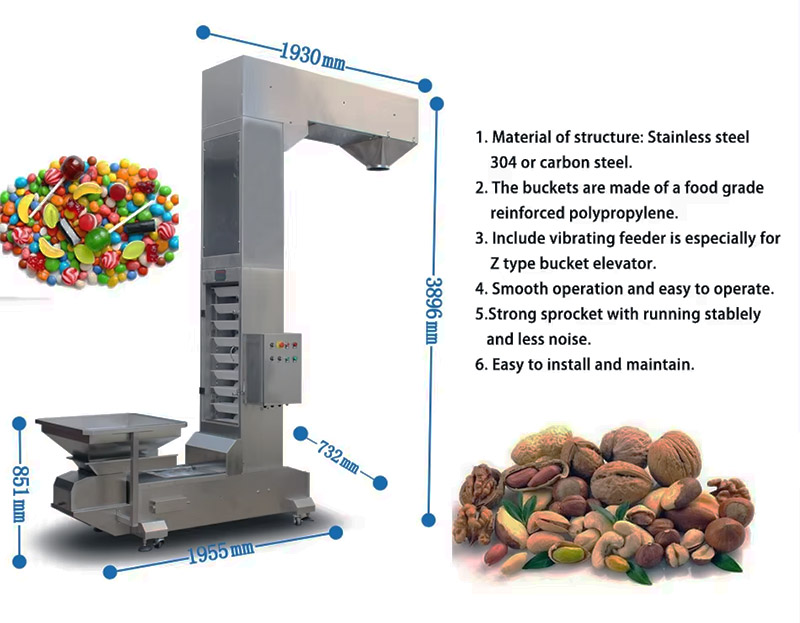

Sugar Bucket Elevator Parameter

bucket volume 1.8L 3.6L 6.5L
bucket material  pp ss304 ABS
body material mild steel stainless steel ---
NO.S of discharge port single muti-discharge port ---
output 4-6m3/h 6.5-8m3/h 5.5-12m3/h
voltage(v) 220v/240v/as you need 380v/415v/440v/as you need as you need
speed  adjustable
conveying capacity 3-10m3/h

Sugar Bucket Elevator Customer Case

1. Candy manufacturing plant: lifting sugar powder from storage silos to candy production lines

Lifting height: 8 meters

Lifting capacity: 3 tons per hour

Solution: Install a stainless steel bucket elevator equipped with a food-grade plastic bucket to ensure hygiene and durability; the equipment adopts a closed design to prevent sugar powder leakage and is equipped with a cleaning system for quick cleaning.

Results: Production efficiency increased by 25%, sugar powder transportation without blockage or waste; fully meets food safety standards.

2. Sugar refinery workshop: lifting raw sugar from the ground to the refining equipment

Lifting height: 12 meters

Lifting capacity: 10 tons per hour

Solution: Use a heavy-duty bucket elevator equipped with a wear-resistant steel bucket to adapt to the abrasiveness of raw sugar; the equipment is equipped with a variable frequency motor to adjust the conveying speed according to production needs.

Results: Raw sugar conveying efficiency increased by 30%, equipment operation is stable, maintenance costs are low; the production process in the refining workshop is smoother.

3. Chocolate production line: lifting sugar from storage silo to chocolate mixing equipment

Lifting height: 6 meters

Lifting capacity: 5 tons per hour

Solution: Install a medium-sized bucket elevator with stainless steel bucket and dust-proof design to ensure pure sugar without pollution; the equipment runs quietly and meets the environmental requirements of the chocolate production workshop.

Results: Sugar transportation is unblocked, and the production efficiency of the mixing equipment is increased by 20%; the equipment is easy to clean and meets food hygiene standards.
