Plate chain bucket elevator for sale

Monday March-24 2025  14:12:38

The price of plate chain bucket elevator varies greatly due to factors such as model, material, lifting height, conveying capacity, bucket design and motor configuration. The following analyzes its price range from key dimensions:

1. Model and price range

Model	Lifting capacity(m3/h)	Max granularity(mm)
		maximum percent(%)
		10	25	50	75	100
NE15	<16	<65	<50	<40	<30	<25
NE30	<31	<90	<75	<58	<47	<40
NE50	<60	<90	<75	<58	<47	<40
NE100	<110	<130	<105	<80	<65	<55
NE150	<165	<130	<105	<80	<65	<70
NE200	<220	<170	<135	<100	<85	<70
NE300	<320	<170	<135	<100	<85	<70
NE400	<441	<250	<165	<125	<105	<90
NE500	<470	<240	<190	<145	<120	<100
NE600	<600	<240	<190	<145	<120	<100
NE800	<800	<275	<220	<165	<135	<100

NE series (basic model):

Lifting capacity: 15~800m³/h, lifting height 1~20 meters, width 300~1500mm.

Price: Priced by meter, about US$107/meter, the total price of the 20-meter basic model is about US$2140.

NSE series (high-end model):

Lifting capacity: 100~1000m³/h, lifting height up to 65 meters, chain speed ≤70m/min.

Price: Customization is required, estimated at $2140~$42,860), which needs to be negotiated based on conveying capacity, height and configuration.

2. Plate chain material and cost

Ordinary carbon steel: Low cost, suitable for general materials (such as coal, dry clay), the basic model uses this material.

Stainless steel/alloy steel: Stronger wear resistance, suitable for highly abrasive materials (such as ore), 20%~30% higher price than carbon steel.

High-strength wear-resistant chain plate (45# steel): Used in high-end models (such as NSE series), long service life, but higher cost.

3. Influence of lifting height and conveying volume

Lifting height:

1~20 meters: The price increases linearly with height (107 US dollars/meter).

20~65 meters: Customized intermediate sections and reinforcement structures are required, and the price increases significantly. For example, 65-meter equipment may reach $14,000~$28,600.

Conveying volume:

Low conveying volume (such as 100m³/h): The price is relatively low, about $2140~4280.

High conveying volume (such as 1000m³/h): High-power motors and high-strength chains are required, and the price can reach more than $42,860.

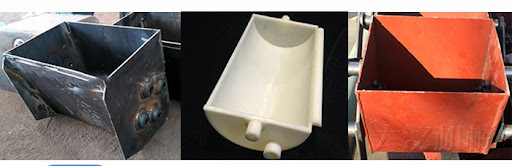

4. Hopper design and motor configuration

Hopper volume and filling rate:

NSE series hopper volume is 72.5~391L/m³, filling rate is 60%~65%, large-capacity hoppers require higher strength design, and the cost increases by 15%~25%.

Motor configuration:

Basic model: Y series motor + hard gear reducer, stable cost.

High-end model: YOX hydraulic coupling + electromagnetic clutch, improves running stability, price increases by 10%~20%.

5. Comprehensive price reference table

Small carbon steel basic model (NE type): $2140~$7140, low abrasive materials (building materials, feed)

Medium stainless steel customized model: $7140~$21,430, anti-corrosion scenarios (chemical, food)

Large alloy steel high-performance model: $21,430~$42,860, high-intensity continuous operation (mining, metallurgy)

Summary and suggestions

Basic needs: Choose the NE series, which is transparent and cost-effective (starting at about $500.00).

Customized needs: Contact manufacturers such as Anhui Sanhe Heavy Industry or Xinxin Mine to customize solutions based on conveying volume, height and material.

Long-term costs: High-end models (such as the NSE series) save 30% energy, and wear-resistant design can reduce maintenance costs
