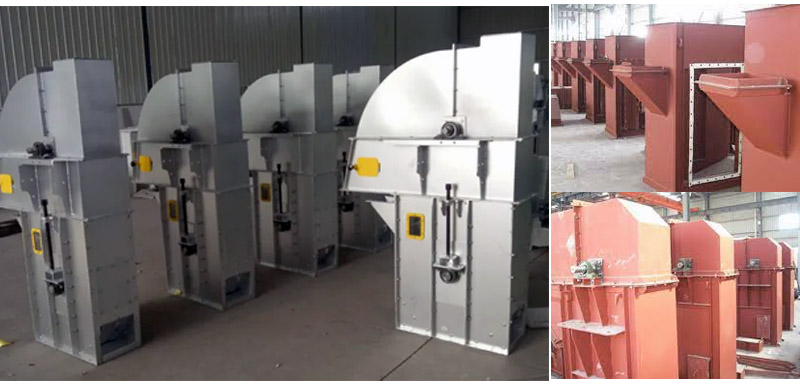

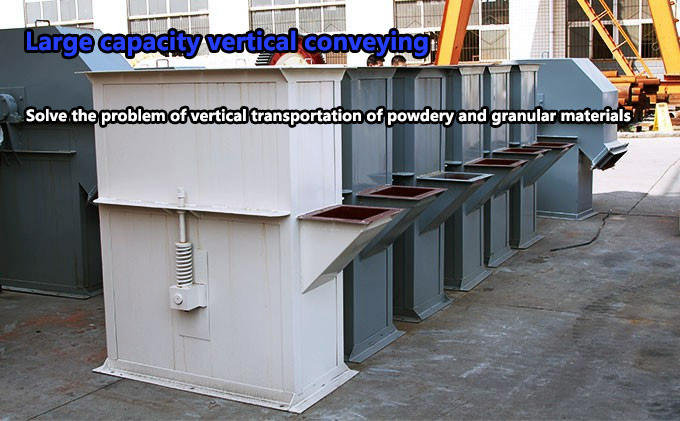

GTD Bucket Elevator

What is GTD Bucket Elevator?

GTD Bucket Elevator is an efficient and reliable vertical material conveying equipment, widely used in building materials, chemical, coal, electricity, grain and other industries. It uses belts or chains as traction components to lift materials vertically from low to high through the hopper. It has the characteristics of large conveying capacity, stable operation and good sealing.

What are the advantages of GTD Bucket Elevator?

Efficient conveying: large conveying capacity to meet large-scale production needs.

Smooth operation: advanced design and manufacturing technology are used to ensure stable operation of the equipment and low failure rate.

Good sealing: fully enclosed structure to prevent material leakage and dust pollution, in line with environmental protection requirements.

Long service life: hopper and traction components are made of wear-resistant materials with low maintenance costs.

Strong adaptability: suitable for a variety of materials such as powder, granular, block, etc., and can adapt to high temperature environments (up to 250°C).

How does GTD Bucket Elevator work?

The working principle of GTD Bucket Elevator is based on the synergy of the hopper and the traction component:

Loading: The material enters the hopper from the bottom feed port, and the hopper moves upward through the traction component (belt or chain).

Lifting: The hopper is lifted to the top in the vertical direction driven by the traction component.

Unloading: At the top, the hopper bypasses the drive wheel, and the material is discharged from the discharge port under the action of centrifugal force or gravity.

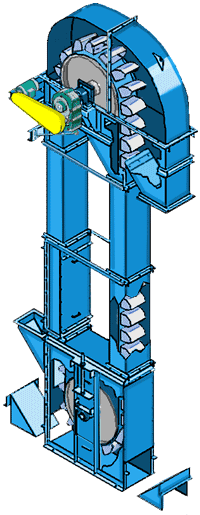

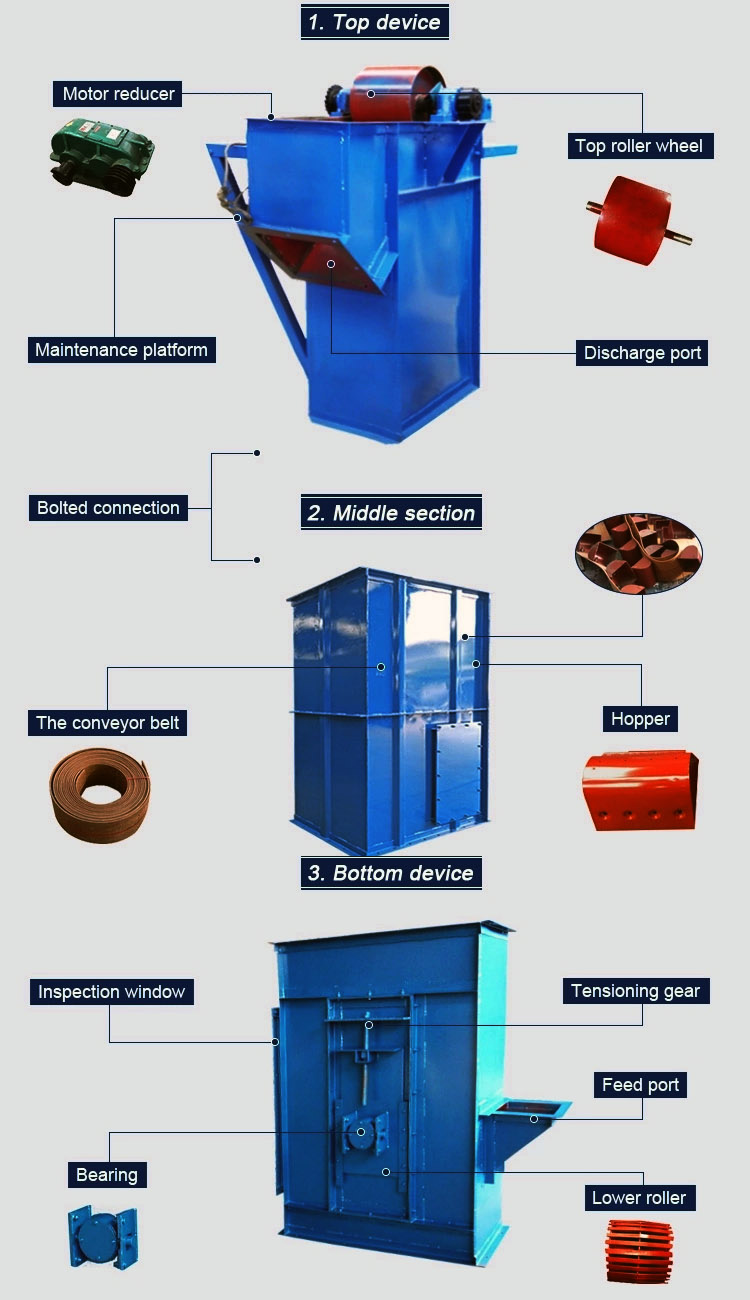

Structural composition of GTD Bucket Elevator

Traction component: Belt (GTD type) or high-strength chain (GTH type) is used to drive the hopper to move.

Hopper: It is divided into deep hopper (bd/dh type) and shallow hopper (ad/ah type), suitable for different material characteristics.

Drive device: It includes motor, reducer and drive wheel to provide power.

Casing: Fully enclosed structure to prevent dust from spilling and protect materials and environment.

Tensioning device: It is used to adjust the tightness of the traction component to ensure smooth operation.

GTD Bucket Elevator Parameters

Model	TD160				TD250				TD315				TD400
Hopper type	Q	h	zD	Sd	Q	h	zD	Sd	Q	h	zD	Sd	Q	h	zD	Sd
Conveying volume (m3/h)	5.4	9.6	9.6	16	12	22	23	35	17	30	25	40	24	46	41	66
Bucket width (mm)	160				250				315				400
Dou Rong (L)	0.5	0.9	4.2	1.9	1.3	2.2	3.0	4.6	2	3.6	3.8	5.8	3.1	5.6	5.9	9.4
Bucket distance (mm)	280		350		360		450		400		500		480		560
Bandwidth (mm)	200				300				400				500
Bucket speed (m/s)	1.4				1.6				1.6				1.8
Material quantity (mm)	25				35				45				55
Model	TD500				TD630			TD160		TD250		TD350		TD450
Hopper form	Q	h	zD	Sd	h	zD	Sd	Q	S	Q	S	Q	S	Q		S
Conveying capacity (m3/h)	38	70	58	92	85	89	142	4.7	8	18	22	25	42	50		72
Bucket width (mm)	500				630			160		250		350		450
Dou Rong (L)	4.8	9	9.3	15	14	14.6	23.5	0.65	1.1	2.6	3.2	7	7.8	14.5		15
Bucket distance (mm)	500		625		710			300		400		500		640
Bandwidth (mm)	600				700			200		300		400		500
Bucket speed (m/s)	1.8				2			1		1.25		1.25		1.25
Material quantity (mm)	60				70			25		35		45		55

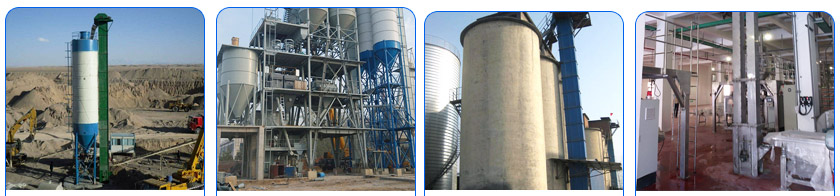

GTD Bucket Elevator Application Industry

Building materials industry: used for conveying cement, lime, sand and gravel and other materials.

Chemical industry: suitable for lifting fertilizers, plastic particles and other materials.

Coal industry: used for vertical conveying of coal, coal dust and other materials.

Grain industry: suitable for lifting grain crops such as wheat, corn and rice.

Power industry: used for conveying fly ash, desulfurized gypsum and other materials.

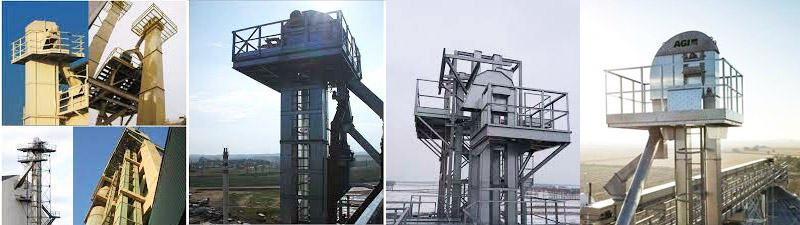

GTD Bucket Elevator Customer Cases

Application scenario	Lift height	Lift capacity	Motor power	Customer feedback
A large cement plant needs to transport raw material powder from the ground to a 30-meter-high preheating tower.	30 meters	120t/h	22 kW	Stable operation, no deviation, good sealing, reduce dust spillage; using high temperature resistant tape, adapt to 80℃ material environment, continuous operation for 2 years without failure.
A grain processing company needs to lift wheat grains from the warehouse to the 15-meter-high cleaning and sorting line. Warehouse	15 meters	50 tons/hour	7.5 kW	Low crushing rate (<0.5%), to ensure the integrity of grains; equipped with variable frequency motor, the speed can be flexibly adjusted according to the output, saving 20% ​​energy.
A chemical plant needs to transport calcium carbonate powder to a 20-meter-high mixing tank in an explosion-proof environment.	20 meters	80 tons/hour	18.5KW	Fully enclosed design eliminates the risk of dust explosion and has passed ATEX certification; wear-resistant chain + stainless steel hopper, service life is extended by 3 times, and maintenance costs are reduced by 40%.

A cement plant: uses GTD Bucket Elevator to lift cement, with a conveying capacity of 150 t/h and a lifting height of 30 meters. The equipment runs stably and has low maintenance costs.

A fertilizer plant: uses GTH bucket elevator to convey fertilizer particles, with a lifting height of 25 meters and a conveying capacity of 100 t/h. The equipment has good sealing and no dust leakage.

A grain processing plant: Use GTD bucket elevator to lift wheat, with a conveying capacity of 80 t/h and a lifting height of 20 meters. The equipment runs smoothly and is highly efficient.

How to select GTD Bucket Elevator?

Select according to material characteristics

For powdery and granular materials, choose a deep bucket (bd/dh type).

For blocky and sticky materials, choose a shallow bucket (ad/ah type).

Select according to the conveying volume

For small conveying volume (<50 t/h): choose a model with a smaller bucket width.

For large conveying volume (>200 t/h): choose a model with a larger bucket width.

Select according to the lifting height

For low height (<25 meters): choose a screw tensioning device.

For high height (>25 meters): choose a gravity tensioning device.

Select according to environmental requirements

For high temperature environment: choose high temperature resistant chains and buckets.

For corrosive environment: choose stainless steel.
