Chemical Raw Material Bucket Elevator

Chemical Raw Material Bucket Elevator

Equipment used for vertical transportation of various chemical raw materials. It lifts materials from low to high through a bucket structure and is widely used in chemical, pharmaceutical, food and other industries.

Lifting height: 10m to 50m

Bucket type: Various bucket types are available (such as C-type, Z-type, etc.).

Bucket size: Width is 100mm-400mm, depth is 50mm-200mm.

Lifting speed: 0.5m/s-2m/s

Motor power: 1.5 kW-15 kW

What is Chemical Raw Material Bucket Elevator?

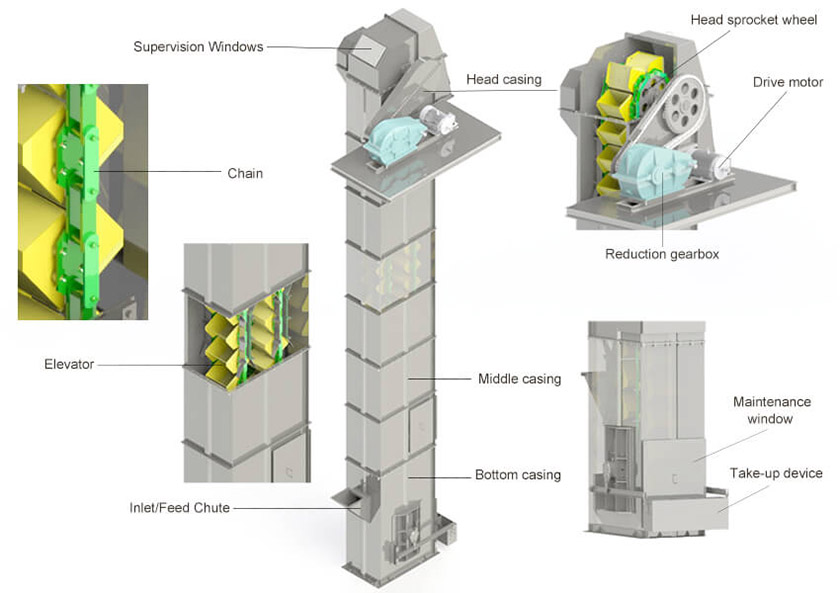

Chemical raw material bucket elevator is a mechanical equipment specially used for vertical conveying of chemical raw materials (such as granules, powders, minerals, etc.). Its core structure includes a hopper, a traction belt (or chain), a drive device and a shell, which is suitable for continuous and efficient lifting of materials. According to the design type, the common ones are Z-type chain bucket elevator and EI-type bucket elevator, and the lifting height range is generally 3 meters to 45 meters, and some models can reach 10 meters or higher.

Why Use Bucket Elevator to Transport Chemical Raw Material?

-Particle material transportation: such as fertilizers, plastic granules, mineral granules, etc.

-Powdered raw materials: such as chemical powders, fine chemicals, etc.

-Food and agriculture: For example, the lifting of agricultural products such as potatoes and grains (must meet food grade material requirements).

What are the applications of Chemical Raw Material Bucket Elevator?

-Chemical Industry: For vertical conveying of fertilizers, plastic granules, and mineral raw materials.

-Food processing: Such as the cleaning and packaging process of agricultural products.

-Pharmaceutical and Agriculture: Conveying APIs, seeds or fertilizers.

-Building materials and mining: such as cement, sand and gravel lifting.

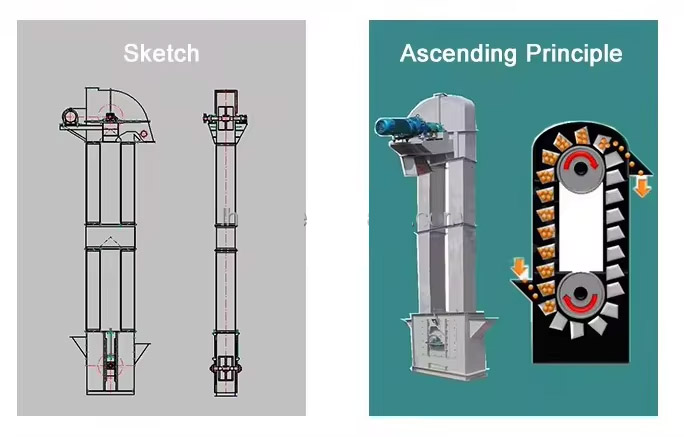

How does the Chemical Raw Material Bucket Elevator work?

The Chemical Raw Material Bucket Elevator works by using motor-driven buckets attached to a belt/chain to scoop materials from the lower inlet, vertically lift them, and discharge them at the top through centrifugal force or gravity when the buckets flip over, ensuring enclosed, dust-free transport of powders, granules, or abrasive chemicals.

What are the advantages of Chemical Raw Material Bucket Elevator?

-High efficiency and energy saving: The low speed design reduces energy consumption and is suitable for large-scale continuous operations.

-Modular structure: easy to install and maintain, and the lifting height can be adjusted according to needs.

-Good sealing: The shell design reduces dust leakage and meets environmental protection and safety standards.

-Strong adaptability: It can handle high-temperature and corrosive materials (corrosion-resistant materials such as PP or stainless steel are required).

Chemical Raw Material Bucket Elevator Parameters

Model TH300 TH400 TH315 TH400 TH500 TH630 TH800
Bucket form Q S Q S Zh Sh Zh Sh Zh Sh Zh Sh Zh Sh
Capacity(m3/h) 24 28 45 47 21 36 36 56 45 70 68 110 87 141
Bucket width(mm) 300 400 315 400 500 630 800
Bucket volume (L) 4.4 5.2 10 10.5 3.75 6 5.9 9.5 9.3 15 14.6 23.6 23.3 37.5
Pitch of buckets(mm) 512 512 512 512 688 688 920
Chain specification Φ18×64 Φ18×64 Φ18×64 Φ18×64 Φ22×86 Φ22×86 Φ26×92
Sprocket pitch diameter(mm) 630 630 630 710 800 900 1000
Bucket speed(m/s) 1.4 1.4 1.4 1.4 1.5 1.5 1.6
The maximum size of material(mm) 40 50 45 55 65 75 85

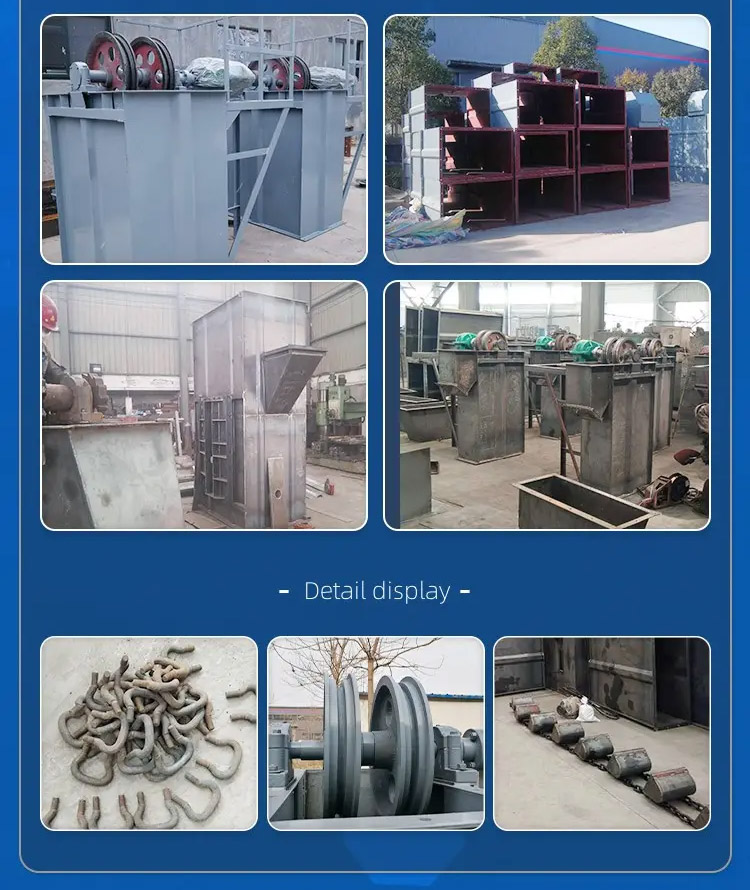

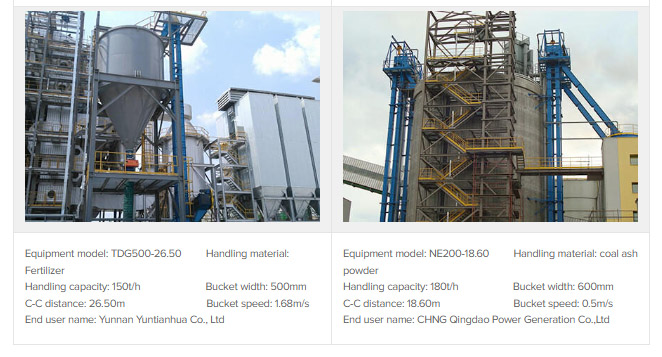

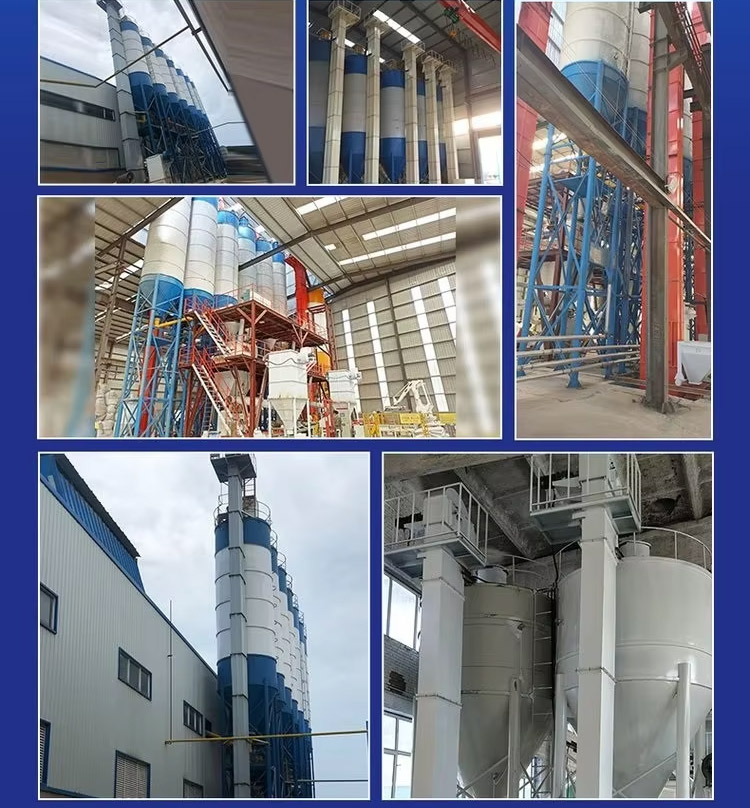

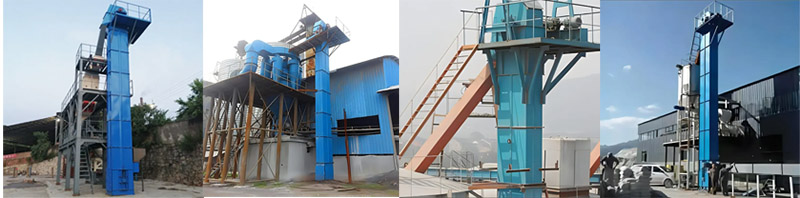

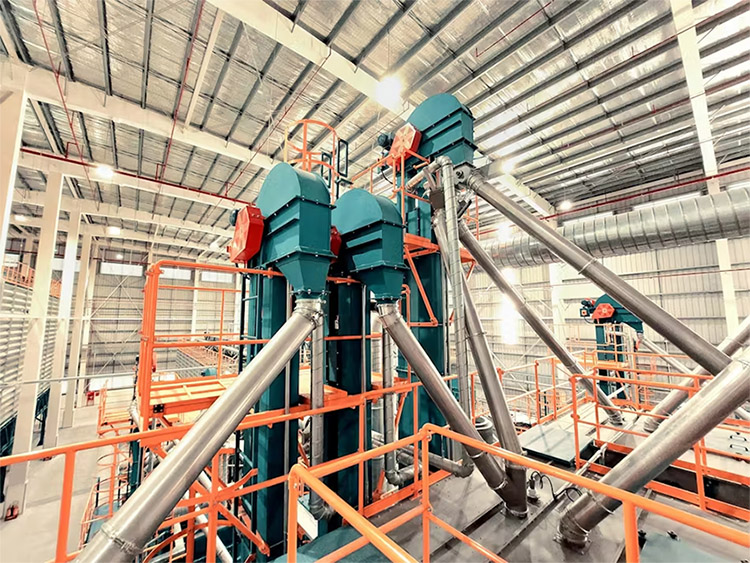

Chemical Raw Material Bucket Elevator use site

Application Scenario Lifting Height (m) Capacity (m³/h) Power Configuration Notes
Phosphate Fertilizer Plant 15 – 25 50 – 100 7.5 – 15 kW motor Handles powdered phosphate; stainless steel construction for corrosion resistance.
Chemical Powder Processing 10 – 20 30 – 80 5.5 – 11 kW motor Enclosed design to prevent dust leakage; centrifugal discharge for fine powders
Lithium Battery Material Transport 8 – 15 20 – 60 4 – 7.5 kW motor Used for lithium carbonate/cobalt oxide; wear-resistant chain buckets
Acid-Resistant Chemical Transport 12 – 30 40 – 120 11 – 22 kW motor PVC-coated or stainless steel buckets for acidic/alkaline materials

How to select a Chemical raw material bucket elevator?

1. Material characteristics: particle size, humidity, corrosiveness (select corrosion-resistant materials).

2. Processing capacity: select hopper capacity and speed based on hourly delivery volume.

3. Space limitations: lifting height and installation position (such as Z type is suitable for space-constrained scenarios).

4. Environmental requirements: explosion-proof, waterproof or food-grade certification (such as PP material required in the food industry).

5. Maintenance cost: Chain type is suitable for heavy loads but requires regular lubrication, while belt type is easier to maintain.
